Applications

本機適用于制藥，化工，食品等行業的干粉物料粒度的分級之用。

This machine is suitable for grading the granularity of dry powder materials in pharmaceutical, chemical and food industries.

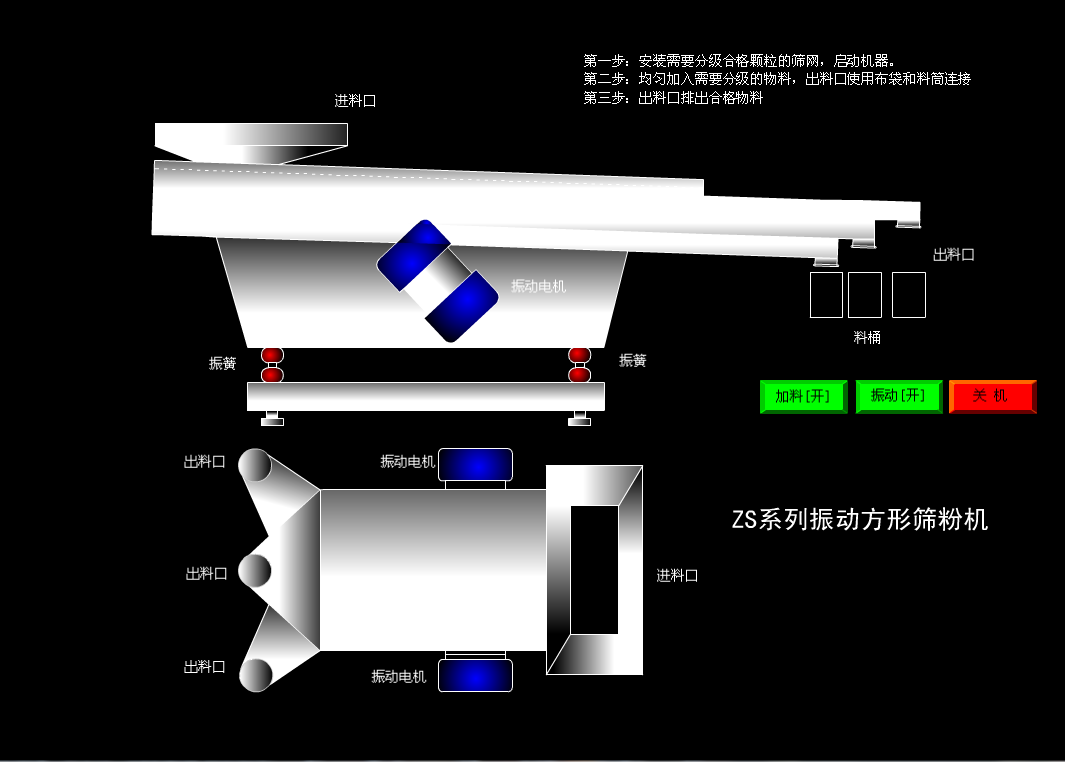

Working principle

本機由篩箱，振動源及減震器三大部分組成。振動機架與篩箱連接有4-12組軟橡膠減震器上下固定， 產生離心力，由震器控制浮動振幅，

使物料有一個向下拋震和向下分層過濾的過程，從而達到*佳分級過篩的效果。

The machine consists of screen box, vibration source and shock absorber. There are 4-12 groups of soft rubber shock absorbers

fixed up and down between the vibration frame and the screen box, whick produce centrifugal force and control the floating

amplitude by the shock absorber, so that the material has a process of downward throwing and downward layered filtering , so as to achieve the best graded screening effect.

技術參數

Model	STCZ-0.3M2	STCZ-0.5M2	STCZ-0.8M2	STCZ-1.2M2	STCZ-1.8M2
Throughput(kg/h)	50-300	80-450	200-700	400-1100	700-1600
Overall dimension(mm)	1450*550*700	1200*660*1250	1650*750*1350	1800*850*1450	2200*1100*1500
Power(kw)	0.2	0.2	0.2*2	0.4*2	0.4*2
Numbers screen(mesh)	2-150	2-150	2-150	2-150	2-150
Vibration frequency(r/min)	1400	1400	1400	1400	1400
Weight(kg)	120	180	220	300	400
